Transform Effector

Transform Effector Object

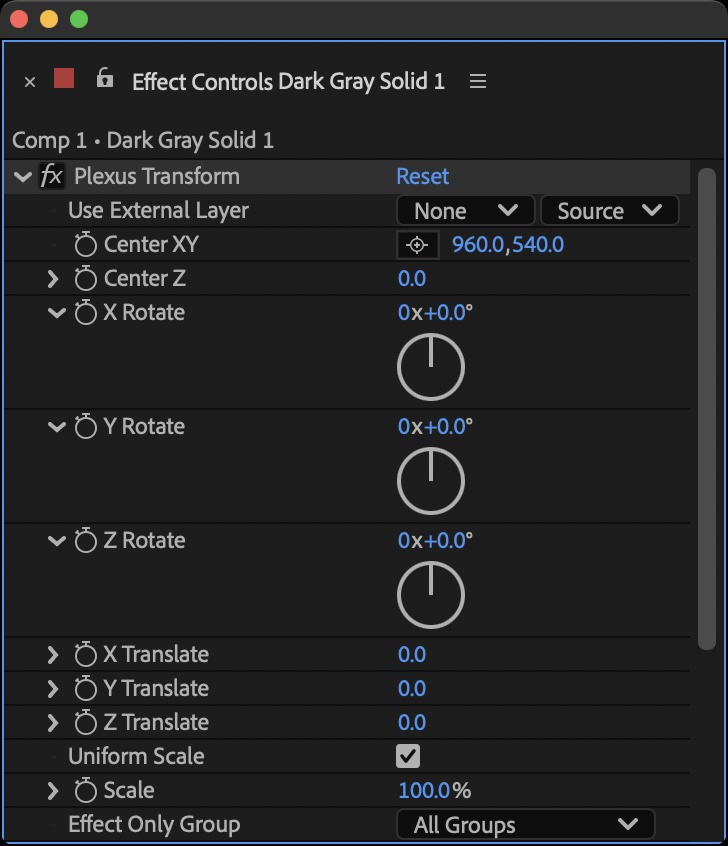

Transforms the entire Plexus, or just specific groups. You can translate, rotate and scale the entire Plexus/group. Starting v3.2.9 - Optionally you can use any AE Layer to drive the transforms

Use External Layer: Optionally use an external AE layer in the current composition. If selected, all the transforms will be derived from the selected layer. Null Objects are recommended.

X Rotate: Rotates the Plexus along the X axis.

Y Rotate: Rotates the Plexus along the Y axis.

Z Rotate: Rotates the Plexus along the Z axis.

X Translate: Offsets the Plexus along X axis.

Y Translate: Offsets the Plexus along Y axis.

Z Translate: Offsets the Plexus along Z axis.

Uniform Scale: Scales the Plexus uniformly in all axes.

X Scale: Scales the Plexus in the X-axis.

Y Scale: Scales the Plexus in the Y-axis.

Z Scale: Scales the Plexus in the Z-axis.

Effect Only Group: Only vertices in this group will be affected by this effector. If “All Groups” is selected all points in the Plexus are affected.
